Immersion Cooling Container BC40 Elite 1MW Supports 200 Antminer S21 Miners
$158,199.00
The Immersion Cooling Container BC40 Elite 1MW is a state-of-the-art, all-in-one solution engineered for large-scale, high-density cryptocurrency mining operations.

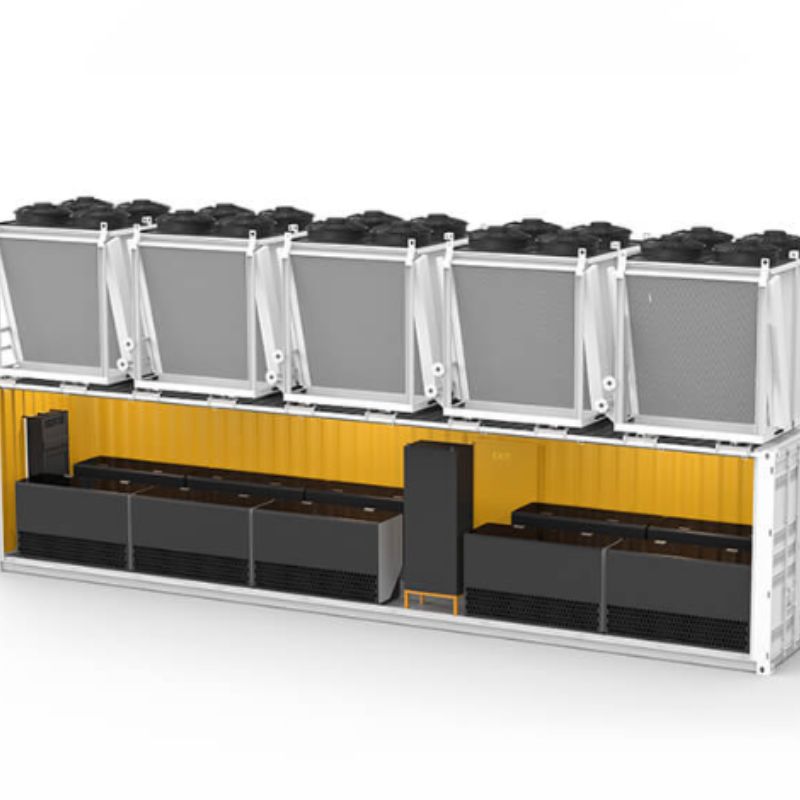

Immersion Cooling Container BC40 Elite
The Immersion Cooling Container BC40 Elite 1MW is a state-of-the-art, all-in-one solution engineered for large-scale, high-density cryptocurrency mining operations. This turnkey system is designed to maximize efficiency and uptime by solving the primary challenges of heat management and deployment speed.
Built around a revolutionary immersion cooling technology, the BC40 Elite efficiently dissipates the immense heat generated by up to 200 high-performance ASIC miners, maintaining optimal operating temperatures even in harsh ambient conditions from -25°C to 48°C. Its innovative modular design integrates the cooling system and power distribution within a standard shipping container, enabling rapid deployment and unparalleled flexibility for mining farms seeking to scale their operations quickly and efficiently. By replacing traditional, noisy air-cooling with silent, effective immersion cooling, the BC40 Elite significantly reduces energy costs, extends miner lifespan, and allows for installation in a wider range of environments.
Features
Modular & All-In-One Design
Integrated Dry Cooler: Mounted directly on the container roof to save significant ground space.
Rapid Deployment: Pre-assembled, all-in-one design drastically reduces installation and commissioning time.
Swift Mobility: Integrated design allows the entire unit to be easily transported and relocated as a single entity.
High-Density Miner Support
Total Capacity: Supports up to 200 ASIC miners.
Broad Compatibility: Compatible with over 98% of mining rig models on the market.
Example Configurations:
200 x Antminer S21 (air-cooled)
180 x Antminer T21 or M66S
160 x Antminer S21 Hydro / S21 XP (immersion)
FAQ
What is the benifits of immersion cooling?
lmmersion cooling offers superior heat removal efficiency compared totraditional air cooling systems, especially at scale. lts advantages include:
- Enhanced Efficiency and Performance: By maintaining lower ASlC chiptemperatures, immersion cooling not only boosts the hash rate of miningmachines but also extends their lifespan. This is critical for optimizing powerefficiency and ensuring long-term operational reliability.
- Noise Reduction: Mining operations utilizing immersion cooling benefit fromsignificantly quieter environments, as the system operates at much lowernoise levels compared to traditional air-cooled setups.
How immersion cooling works?
lmmersion cooling is an efficient thermal management solution designed forASlC miners. The process involves the following key steps:
- Component Submersion: The heat-generating miners are fully immersed ina tank filled with synthetic dielectric fuid (provided by FogHashing). Thisspecialized fuid effectively absorbs heat while remaining electrically nonconductive.
- Heat Absorption: During operation, the heat generated by the miners isabsorbed by the synthetic dielectric fuid, preventing the hardware fromoverheating and ensuring optimal performance.
- Heat Transfer and Cooling: The heated fuid is then circulated to an externalcooling system (such as a dry cooler or cooling tower), where the absorbedheat is dissipated into the environment.
How many miners can one BC40 Elite container hold?
The container can support up to 200 miners, depending on the model. For example, it can hold 200 Antminer S21s (air-cooled), 180 T21s/M66S, or 160 immersion-ready models like the S21 Hydro.
| Cooling Capacity |
1 MW |
|---|---|
| Miner Capacity |
200 × S21 |
| Qty of Tanks |
10 × B100 Tank |
| Coolant Volume |
6000 L |
| External Cooler |
Dry Cooler, with optional spray system |
| Circulation Mode |
Single Loop |
| Inlet / Outlet Temperature |
Inlet 46°C, Outlet 54°C (under 40°C ambient conditions) |
| Ambient Temperature |
-25 °C ~ 50 °C |
| Dimension |
40HC, 12192mm(L) × 2438mm(W) × 2896mm(H) |
| Total Weight |
~ 18t empty, ~ 28t with miners and coolant |
| Max Power Capacity |
1437 kW |
| Non-mining Power Load |
56 ~ 96 kW |
| Power Supply |
1 × 2000A, 3 phase 350-480V 50/60Hz |
| Smart PDU |
•10 × Smart PDU |
| Monitoring and Control |
•Tank-level mini display for instant status |
| Extra components inside |
Lighting System, Ventilation and Filtration, Ambient Temperature and Humidity Sensors, Smoke Sensors, Remote Cameras, etc. |
