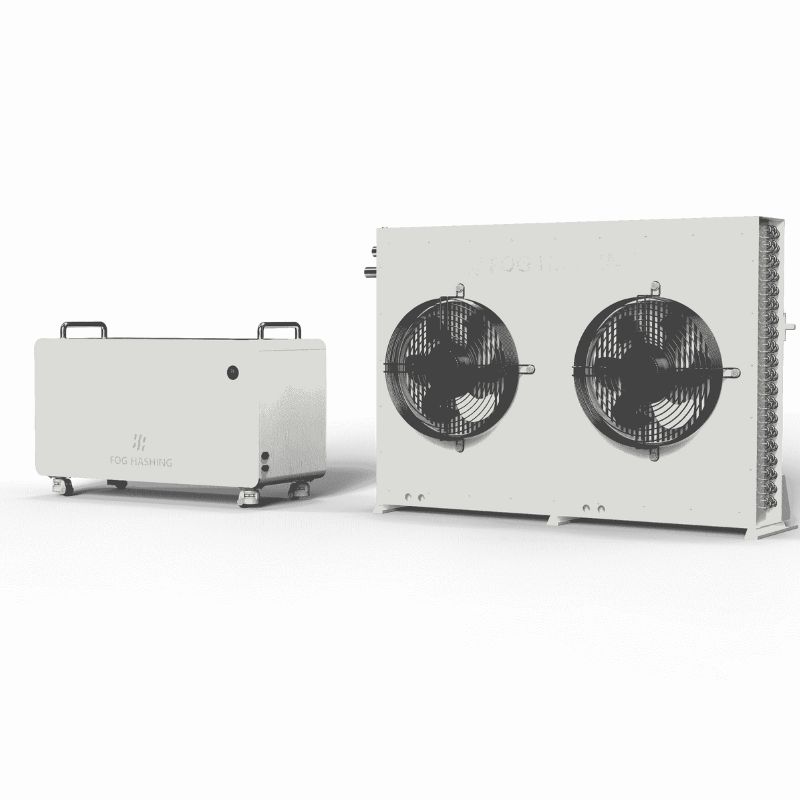

Immersion Cooling Kit C6 with Dry Cooler 24KW Support 6 Asic Miners
$899.00
The Immersion Cooling Kit C6 with Dry Cooler is a high-performance, all-in-one cooling solution designed for serious cryptocurrency miners.

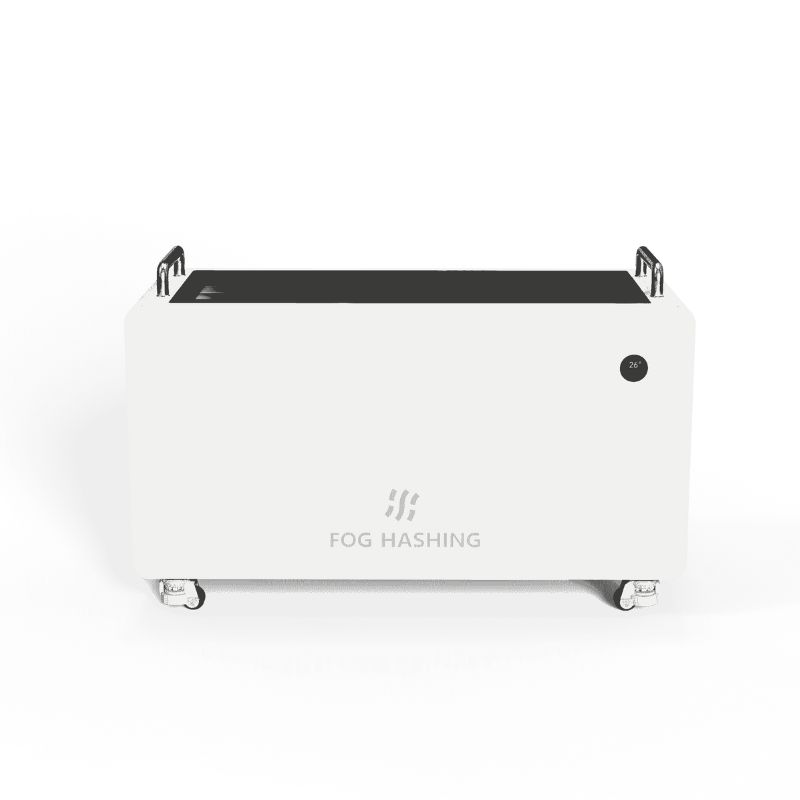

Immersion Cooling Kit C6
The Immersion Cooling Kit C6 with Dry Cooler is a high-performance, all-in-one cooling solution designed for serious cryptocurrency miners. Engineered to support up to six high-power ASIC miners simultaneously, this system replaces traditional, noisy air cooling by completely submerging hardware in a non-conductive, thermally efficient dielectric fluid.
By eliminating dust, reducing thermal stress, and maintaining a consistent operating temperature, the C6 kit ensures your mining rigs operate at peak efficiency and stability. This dramatically extends the lifespan of your valuable hardware while significantly reducing acoustic noise output to a mere whisper. Its streamlined, integrated design combines the tank and dry cooler into a single unit, making deployment straightforward and eliminating the need for complex secondary cooling loops or water infrastructure.
Features
High-Capacity Support: Cool up to six (6) modern ASIC miners simultaneously. Compatible with popular models like the Antminer S21, Whatsminer M50/M60 series (e.g., M50S, M53S+), Canaan Avalon KS5, and MicroBT Whatsminer series.

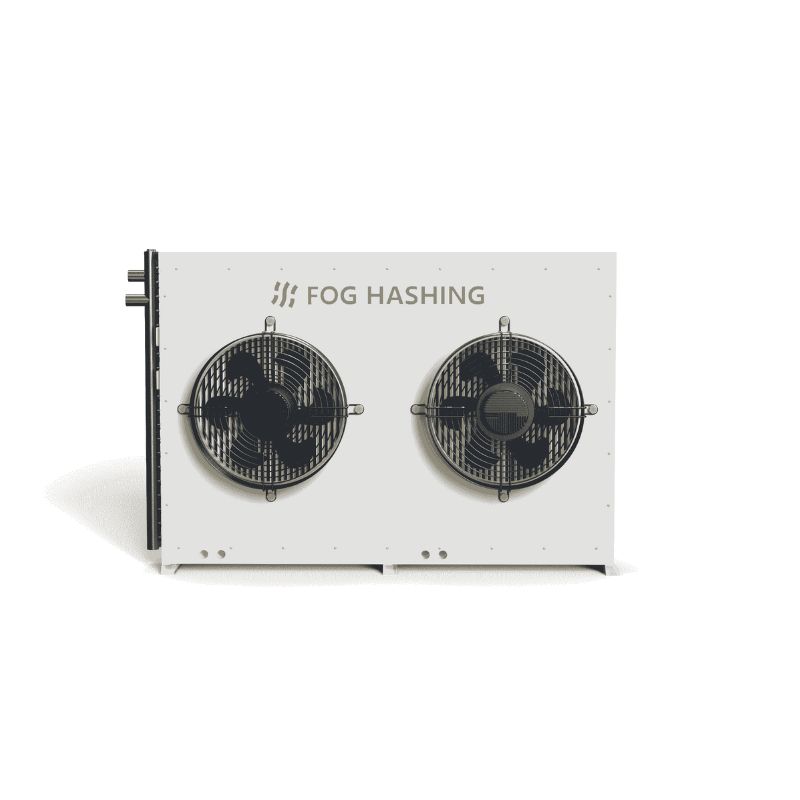

Integrated Dry Cooler System: Features a built-in 24KW dry cooler, creating a closed-loop system that requires only a single-phase power connection. There is no need for additional water cooling or expensive chillers, simplifying installation and reducing water costs.
Smart Monitoring & Control: Equipped with an intuitive 1.32” OLED display for real-time monitoring of system status, including coolant temperature, flow rate, and pump performance. Features smart software for automatic adjustment of cooling parameters.
Whisper-Quiet Operation: Produces only 45dB(A) of noise from 10 meters away—quieter than a standard conversation—making it suitable for noise-sensitive environments like garages or small workshops.
Efficient & Powerful Circulation: A high-flow pump ensures optimal heat transfer with a flow rate of 90 liters per minute, constantly moving coolant across the miners' heated surfaces to the dry cooler.
FAQ
What is immersion cooling?
lmmersion cooling is a method in which mining hardware, specifically ASlCs, is submerged in a pool of dielectric (non-conductive) fuid toefficiently dissipate the heat generated during the mining process.
What is the benifits of immersion cooling?
lmmersion cooling offers superior heat removal efficiency compared totraditional air cooling systems, especially at scale. lts advantages include:
- Enhanced Efficiency and Performance: By maintaining lower ASlC chiptemperatures, immersion cooling not only boosts the hash rate of miningmachines but also extends their lifespan. This is critical for optimizing powerefficiency and ensuring long-term operational reliability.
- Noise Reduction: Mining operations utilizing immersion cooling benefit fromsignificantly quieter environments, as the system operates at much lowernoise levels compared to traditional air-cooled setups.
How immersion cooling works?
lmmersion cooling is an efficient thermal management solution designed forASlC miners. The process involves the following key steps:
- Component Submersion: The heat-generating miners are fully immersed ina tank filled with synthetic dielectric fuid (provided by FogHashing). Thisspecialized fuid effectively absorbs heat while remaining electrically nonconductive.
- Heat Absorption: During operation, the heat generated by the miners isabsorbed by the synthetic dielectric fuid, preventing the hardware fromoverheating and ensuring optimal performance.
- Heat Transfer and Cooling: The heated fuid is then circulated to an externalcooling system (such as a dry cooler or cooling tower), where the absorbedheat is dissipated into the environment.
| Inner Size |
912(L)*404(W)*355(H)mm |
|---|---|
| Coolant Volume |
200L |
| Display |
1.32” OLED Screen |
| Flow |
90L/min |
| Qty of Miner(s) |
6*S21/KS5M/DG1/L9 |
| PDU |
Single-phase: 220V 125A 6C19 |
| Ambient Temperature |
-25~55°C |
| Outer Size |
1680(L)*400(W)*1015(H)mm |
| Power |
10-1400W(Testing by 220V 50Hz) |
| Input Voltage |
Single-phase 200-240V 50/60Hz |
| Net Weight |
110kg |
| Intelligent Speed Tuning |
Automatically adjust the speed according to the temperature |
| Cooling Capacity |
24kW@35°C |
| Noise |
65dB(A)@10m (MAX) |
| EC Fan |
2 pcs |
