Immersion Cooling Mining B100 Tank with Dry Cooler 100KW Support 20 Antminer S21 Miners
Price range: $5,000.00 through $5,800.00
The Immersion Cooling B100 is a cutting-edge, turnkey cooling solution engineered for large-scale cryptocurrency mining and high-performance computing operations.

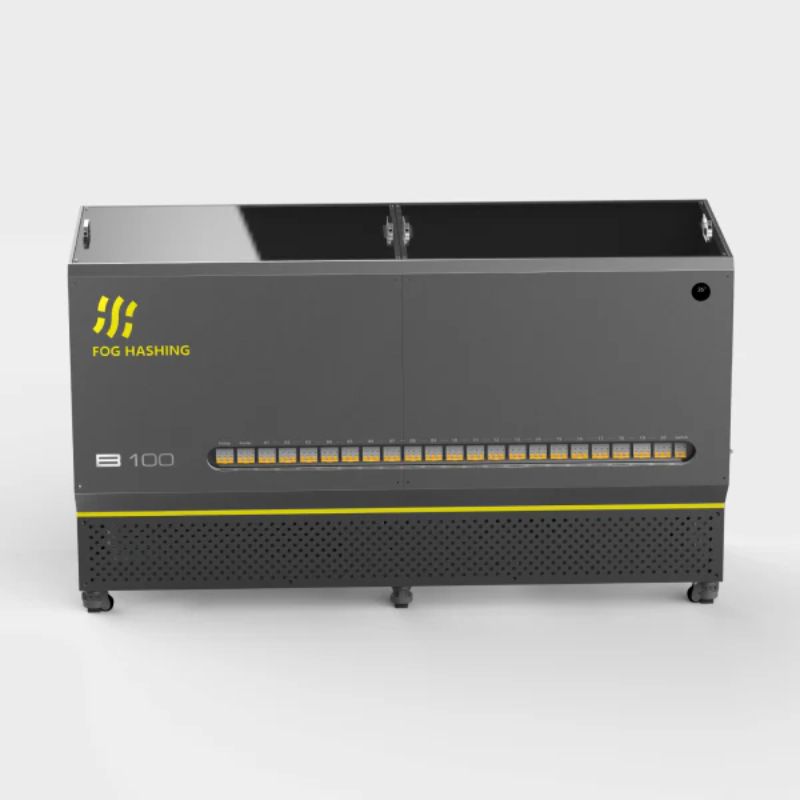

Immersion Cooling B100
The Immersion Cooling B100 is a cutting-edge, turnkey cooling solution engineered for large-scale cryptocurrency mining and high-performance computing operations. It is designed to drastically reduce operational costs, save significant physical space, and simplify deployment.
This system leverages single-phase immersion cooling technology, where mining rigs are fully submerged in a specialized dielectric fluid that efficiently draws heat away from components. The B100's core innovation lies in its modular, pre-installed design, which allows for rapid delivery and setup, minimizing downtime and infrastructure complexity.
Each base B100 unit provides 100kW of cooling capacity, supporting up to 20 miners. For massive deployments, these units can be seamlessly integrated into a comprehensive 1MW all-in-one system that includes an integrated dry cooler, creating a complete and highly efficient cooling loop right out of the box.
Features
Modular & Pre-Installed Design:Â Engineered for large-scale distribution and rapid deployment. The system arrives pre-assembled and tested, ensuring a quick setup and efficient installation process, saving valuable time and labor costs.
Broad Compatibility:Â Supports over 98% of mining rig models on the market, including both air-cooled and immersion-ready units. This provides exceptional versatility and ease of integration with your existing equipment without requiring modifications.
Powerful & Scalable Cooling:Â Each individual B100 unit delivers 100kW of cooling power, accommodating up to 20 miners per tank. For larger needs, a scalable 1MW solution is available, configured from ten B100 tanks.
1MW All-in-One Skid-Mounted Module:Â The large-scale configuration features a complete, integrated system on a single skid. This includes the cooling tanks, power distribution panels, Coolant Distribution Unit (CDU), and all necessary piping, pre-configured as a "super module" for plug-and-play operation.
FAQ
What is immersion cooling?
lmmersion cooling is a method in which mining hardware, specifically ASlCs, is submerged in a pool of dielectric (non-conductive) fuid toefficiently dissipate the heat generated during the mining process.
What is the benifits of immersion cooling?
lmmersion cooling offers superior heat removal efficiency compared totraditional air cooling systems, especially at scale. lts advantages include:
- Enhanced Efficiency and Performance: By maintaining lower ASlC chiptemperatures, immersion cooling not only boosts the hash rate of miningmachines but also extends their lifespan. This is critical for optimizing powerefficiency and ensuring long-term operational reliability.
- Noise Reduction: Mining operations utilizing immersion cooling benefit fromsignificantly quieter environments, as the system operates at much lowernoise levels compared to traditional air-cooled setups.
How immersion cooling works?
lmmersion cooling is an efficient thermal management solution designed forASlC miners. The process involves the following key steps:
- Component Submersion: The heat-generating miners are fully immersed ina tank filled with synthetic dielectric fuid (provided by FogHashing). Thisspecialized fuid effectively absorbs heat while remaining electrically nonconductive.
- Heat Absorption: During operation, the heat generated by the miners isabsorbed by the synthetic dielectric fuid, preventing the hardware fromoverheating and ensuring optimal performance.
- Heat Transfer and Cooling: The heated fuid is then circulated to an externalcooling system (such as a dry cooler or cooling tower), where the absorbedheat is dissipated into the environment.
| Specification |
B100 Tank ,B100 Tank+Dry Cooler |
|---|---|
| Dimensions |
2,010mm(L) × 746.2mm(W) × 1,190mm(H) |
| Qty of Miners |
20*S21 |
| Cooling Capacity |
100kW |
| Circulation Mode |
Single Loop / Dual Loop |
| Coolant Volume |
600L |
| Cooling Type |
Dry Cooler |
| Power Input |
Three-phase 350-480V 50/60Hz |
| Power Output |
Single-phase 200-277V 50/60Hz or 3-phase 350-480V 50/60Hz |
| Max Power Load |
110kW |
| Non-Mining Power Load |
5.6-9.5kW |
| Inlet/Outlet Temp |
Inlet 46°C, Outlet 54°C (under 40°C ambient conditions) |
| Ambient Temperature |
-25°C~55°C |
| Pipe Diameter |
DN50 |
| Monitoring |
1. Tank level mini-LED, Web based portal for remote control |
